AquaView Filter Family

AquaView’s superior sand system combines better filtration with easier to use operation. AquaView™ – clearly the best!



AquaView Filter Family
Available in:
14″, 17″, 20″, 24″



Aquaview14_Detail_01_MediumAquaview14_Detail_02_MediumAquaview14_Detail_03_MediumAquaview20_Detail_04_Medium



Quality Filter Features

  • Uses #20 grade Silica Sand

  • AquaView’s superior sand system combines better filtration with easier to use operation. AquaView™ – clearly the best!

  • Seven Position Rotary Valve

  • 360° Peripheral Underdrain System – no lateral fingers to break.

  • Integrated filter tank/pump base included. Separate bases also available.

  • Special 10 Year Limited Warranty on Filter Tank



Doughboy’s outstanding line of filtration systems consistently deliver purity that is unrivaled in the industry.



Clean water begins at the filter and AquaView’s superior sand system combines better filtration with an easier to use operation. Utilizing advanced water processing technologies, AquaView filters not only outperform the competition but are also friendlier to the environment.

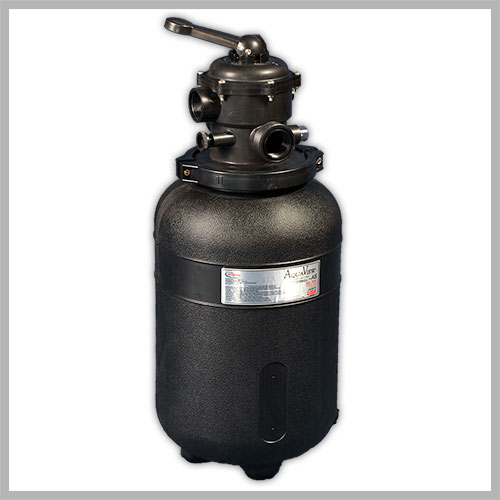

AquaView 14″

  • High Density Polyethylene 14″ (O.D.) Dia. Tank

  • 7 Position Valve

  • 2 ea. 8 ft. & 1 ea. 30″ hoses

  • 1 sq. ft. surface area

  • Sand Capacity–80 lbs.

  • Free-standing filter design

  • PowerLine™ XP Pump Series — ¾, 1½ H.P.



AquaView 17″

  • High Density Polyethylene 17″ (O.D.) Dia. Tank

  • 7 Position Valve

  • 2 ea. 8 ft. & 1 ea. 1 1/2″ x 30″ hoses

  • 1.4 sq. ft. surface area

  • Sand Capacity–100 lbs.

  • Free-standing filter design

  • PowerLine™ XP Pump Series — ¾, 1, 1½ H.P.



AquaView 20″

  • High Density Polyethylene 20″ (O.D.) Dia. Tank

  • 7 Position Valve

  • 2 ea. 8 ft. & 1 ea. high pressure, PVC pump to filter hoses

  • 2 sq. ft. surface area

  • Sand Capacity–150 lbs.

  • Free-standing filter design

  • PowerLine™ XP Pump Series — ¾, 1½ H.P.



AquaView 24″

  • High Density Polyethylene 24″ (O.D.) Dia. Tank

  • 7 Position Valve

  • 2 ea. 8 ft. & 1 ea. high pressure, PVC pump to filter hoses

  • 3.14 sq. ft. surface area

  • Sand Capacity–300 lbs.

  • Free-standing filter design

  • PowerLine™ XP Pump Series — 1, 1½, 2 H.P.
